BOILER LEVEL GAUGE GLASS

Level Gauge Glass Specifications

Boiler gauge glass is a type of glass used in boilers to allow operators to visually check the level of water inside the boiler. Boiler gauge glass is made from borosilicate glass, which has high resistance to heat and chemicals.

Safety sight and level gauge glasses offered by UNITED HARDWARE MART have proved themselves universally where visual process control is essential. Particularly in pressure vessels subjected to thermal and chemical stresses and liquid level gauge application. They are manufactured by reputable, global companies such as Klinger, Maxos.

We offer a wide range of high quality liquid level gauge glasses manufactured according to DIN 7080/7081 and BS 3463, meeting the main international standards (eg. JIS B 8211, MIL - G - 16356D, ÖNORM M 7354, OMV-Spez. H 2009 Esso Eng. Spec. 123, SOD Spec. 123) and satisfy the additional customer requirements.

Depending on the method of production, there are two main groups of liquid level gaugeg lasses:

‍

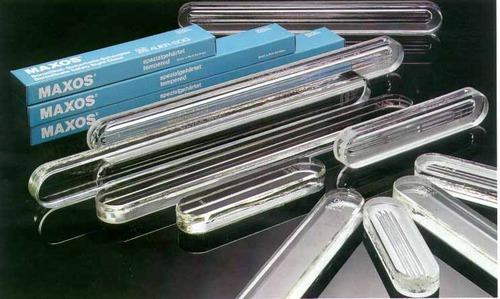

• Transparent - clear (smooth on both sides). In order to increase the resistance to operating conditions (pressure, temperature, aggressive environment), transparent glass is typically protected by mica shields on the medium side,

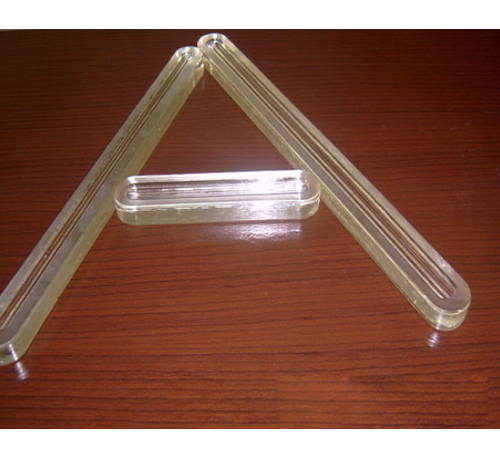

• Reflex - with one-sided imprinted grooves, which enhances the visibility of liquid level. For reflex glasses mica shields are not applicable.

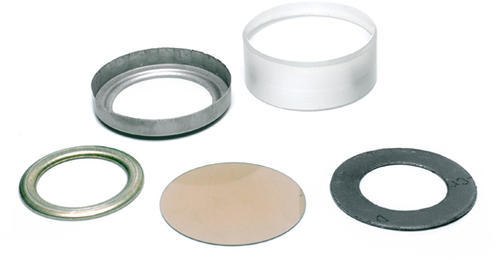

For both types of glasses are defined standard types and sizes. Level gauge glasses are supplied with completeset of gaskets
