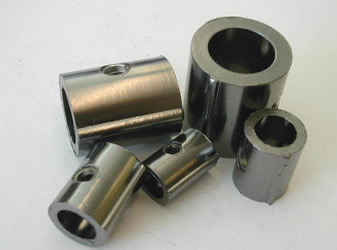

Wedeliver graphite packing sleevs that are an essential parts of any valve.Fitting around to spindle to ensure its smooth action and preventleakage The effective sealing properties, combined with the ease withwhich it can be removed and replace ensure graphite is the material of choice.
|
Size |
Inner diameter
|
Outer diameter
|
Length
|
Dimensioning of graphite sleeves |
|
AB 10 |
10 mm |
14 mm |
18,5 mm |
|
|
AB 12 |
12 mm |
18 mm |
23 mm |
|
|
AB 18 |
18 mm |
26 mm |
32 mm |
|
|
AB 22 |
22 mm |
33 mm |
37 mm |
|
|
AB 28 |
28 mm |
38 mm |
44 mm |
|
|
AB 32 |
32 mm |
45 mm |
52 mm |
|
|
AB 42 |
42 mm |
52 mm |
56 mm |
|
|
AB 50 |
50 mm |
62 mm |
65 mm |
Packing sleeves are used in many brands of gauge cock, to prevent leakage and to ensure effective operation. They are made from 99.5% pure graphite, with stainless steel eyelets, the computer controlled compression, ensure a standard, quality product.

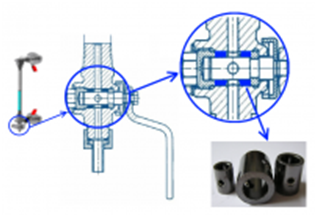

A popular application of graphite sleeve is to seal the drain cocks for level gauges. The use of graphite sleeves provides smooth and reliable operation of the cocks and high resistance to erosive action of the medium and pollution.
The size of sleeve must be exactly matched to the size of the valve (cock). We supply sleeves of standard size as shown in the table:
MICA strips / MICA NITE sheet, Graphite Sleeve and Gaskets fabricated as per custom specifications.
